Harvey Tool
697793

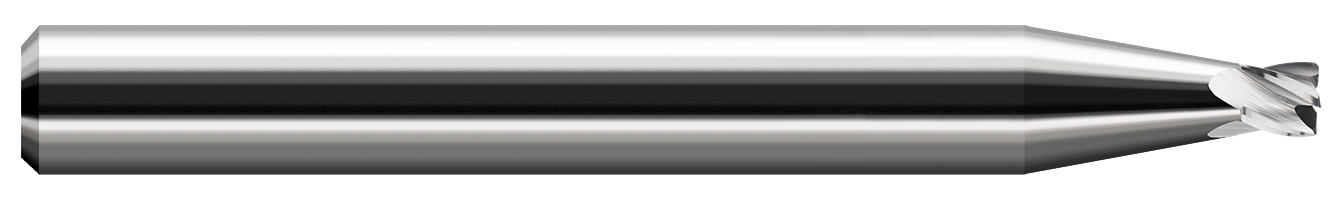

Miniature End Mill - 4 Flute - Corner Radius
Specifications
| Long Description | 0.0930" (3/32) Cutter DIA x 0.0200" Radius x 0.0740" Length of Cut Carbide Corner Radius End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.0930" (3/32) Cutter DIA x 0.0200" Radius x 0.0740" LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (0.8x) |
| Weight | 0.011 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.0740" |
| Corner Radius | 0.0200" |
