Harvey Tool
698512-C10
Multi-Axis Finishers for High Temp - Oval
Specifications

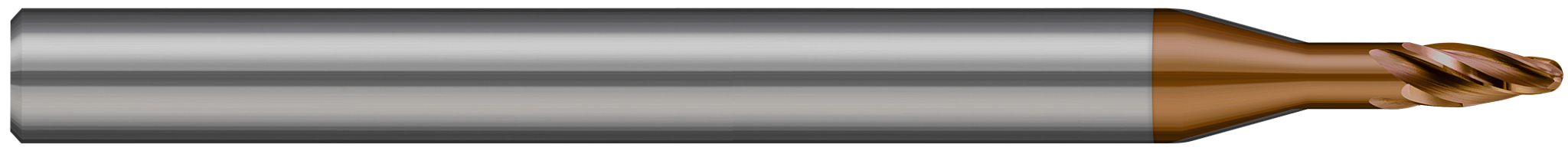

| Long Description | 0.1875" (3/16) Cutter DIA x 0.4130" Length of Cut Carbide Multi Axis Finisher - High Temp - Oval Form, 4 Flutes, Ti-Nano Coated |
|---|---|
| Short Description | 4 FL - 0.1875" (3/16) Cutter DIA x 0.4130" LOC - Ti-Nano Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.055 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Oval |
| Metric | N |
| Coating | C10 |
| Length of Cut | 0.4130" |
| Radius | 1.5000" (1-1/2) |
