Harvey Tool
698708

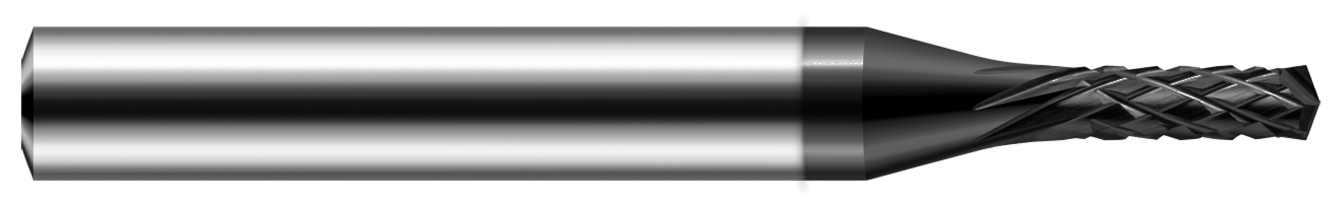

End Mill for Composites - Drill
Specifications
| Short Description | 0.1250" (1/8) Cutter DIA x 0.3750" (3/8) LOC x 140° included - 8 RH Teeth, 10 LH Teeth - CVD Diamond 4µm |
|---|---|
| Long Description | 0.1250" (1/8) Cutter DIA x 0.3750" (3/8) Length of Cut x 140° included Carbide Diamond Cut End Mill, 8 RH Teeth, 10 LH Teeth, CVD Diamond 4µm |
| Point Angle | 140 |
| LOC Multiple | (3x) |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.011 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Drill |
| Metric | N |
| Coating | C9 |
| Length of Cut | 0.3750" (3/8) |
| Right Hand Teeth | 8 |
| Left Hand Teeth | 10 |
