Harvey Tool
700003

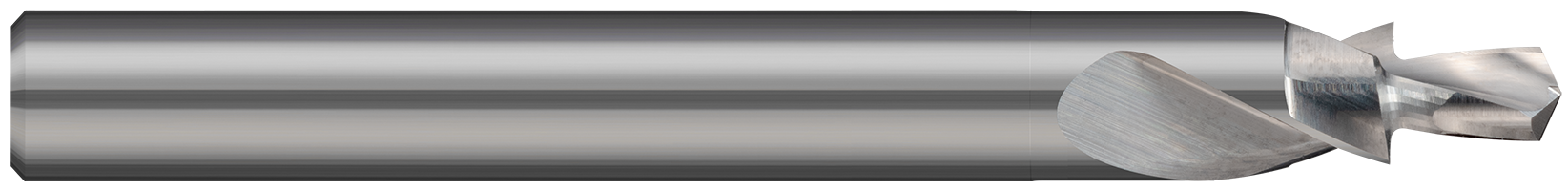

Combined Drill/Counterbore
Specifications
| Short Description | 0.1094" (7/64) Drill DIA x 0.6560" (21/32) Flute Length - 2 FL |
|---|---|
| Point Angle | 130 |
| Long Description | 0.1094" (7/64) Drill DIA x 0.6560" (21/32) Flute Length Carbide Combination Drill/Counterbore, 2 Flutes |
| Weight | 0.123 |
| Shank Diameter | 0.2500" (1/4) |
| Flute Length | 0.6560" (21/32) |
| Flutes | 2 |
| LOC Multiple | (5x) |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2187" (7/32) |
| Profile | Drill |
| Metric | N |
| Coating | UN |
| Size | 3 |
