Harvey Tool
700216

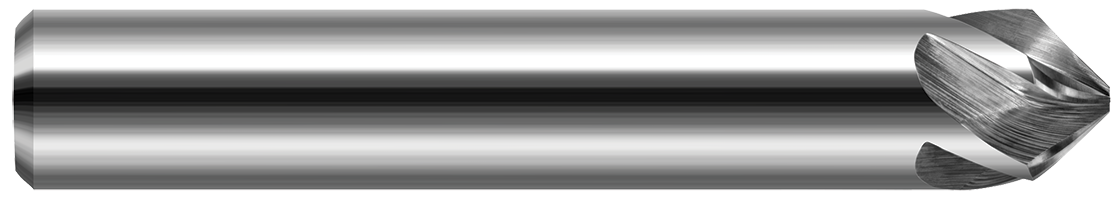

Chamfer Cutter - Flat End - Helical Flutes
Specifications
| Type | II |
|---|---|
| Short Description | 0.2500" (1/4) Shank DIA x 22.5° per side - 5 Helical FL |
| Long Description | 0.2500" (1/4) Shank DIA x 22.5° per side Carbide Flat Chamfer Cutter, 5 Helical Flutes |
| Included Angle | 45 |
| Angle per Side | 22.5 |
| Metric | N |
| Coating | UN |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 5 |
| Weight | 0.06 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Flat |
| Length of Cut | 0.2290" |
