Harvey Tool
700916-C10

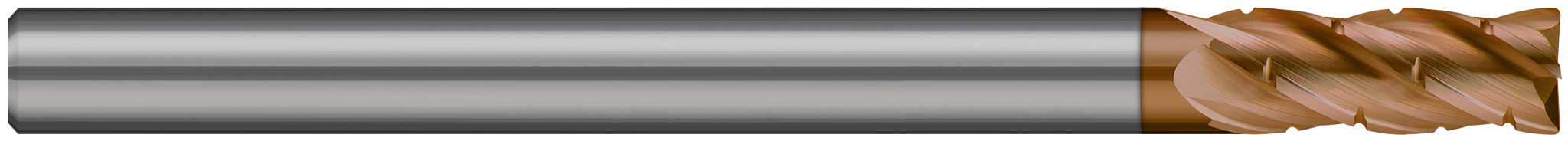

End Mill for High Temp - Corner Radius
Specifications
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0200" Radius x 0.7500" (3/4) Length of Cut Carbide Corner Radius End Mill for Exotic Alloys, 4 Flutes, Ti-Nano Coated |
|---|---|
| Short Description | 4 FL - 0.2500" (1/4) Cutter DIA x 0.0200" Radius x 0.7500" (3/4) LOC - Ti-Nano Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.055 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C10 |
| Length of Cut | 0.7500" (3/4) |
| Corner Radius | 0.0200" |
