Harvey Tool
702462

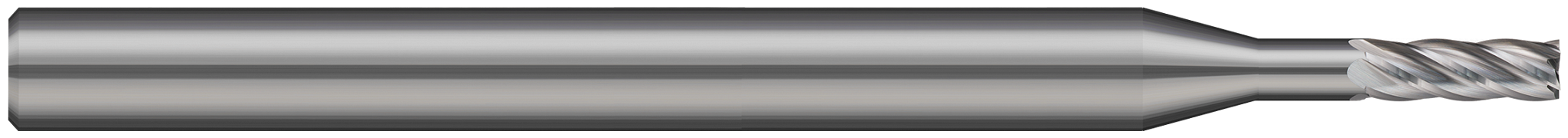

Miniature End Mill - 5 Flute - Square
Specifications
| Long Description | 0.0620" (1/16) Cutter DIA x 0.1860" Length of Cut x 0.3120" (5/16) Reach Carbide Square End Mill, 5 Flutes |
|---|---|
| Short Description | 5 FL - 0.0620" (1/16) Cutter DIA x 0.1860" LOC x 0.3120" (5/16) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 5 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Square |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.0605" |
| Coating | UN |
| Length of Cut | 0.1860" |
