Harvey Tool
70352-C3

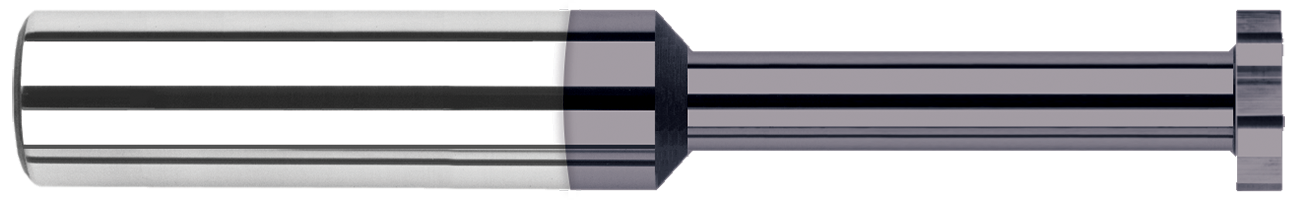

Keyseat Cutter - Square
Specifications
| Type | I |
|---|---|
| Short Description | 0.3750" (3/8) Cutter DIA x 0.1000" Width x 1.1250" (1-1/8) Neck Length - Standard Slotting - 8 FL - AlTiN Coated |
| Long Description | 0.3750" (3/8) Cutter DIA x 0.1000" Width x 1.1250" (1-1/8) Neck Length CarbideSquare Standard Keyseat Cutter, 8 Flutes, AlTiN Coated |
| Cutter Width | 0.1000" |
| Neck Diameter | 0.1870" (3/16) |
| Reach Multiple | (3x) |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 8 |
| Weight | 0.09 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Square |
| Metric | N |
| Neck Length | 1.1250" (1-1/8) |
| Coating | C3 |
