Harvey Tool
705578-C6

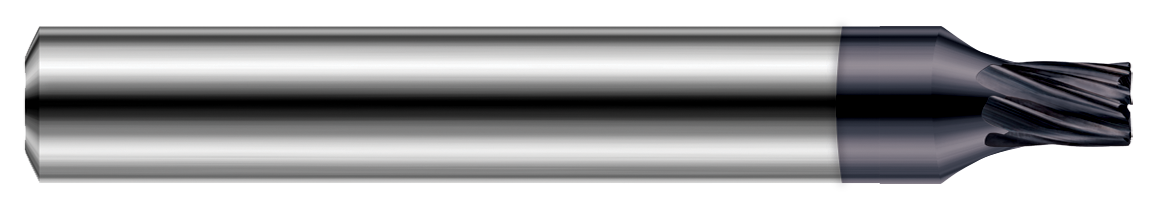

End Mill for Hardened Steels - Corner Radius
Specifications
| Long Description | 0.0780" (5/64) Cutter DIA x 0.0100" Radius x 0.1170" Length of Cut Carbide Corner Radius End Mill for Hard Milling, 7 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 7 FL - 0.0780" (5/64) Cutter DIA x 0.0100" Radius x 0.1170" LOC - AlTiN Nano Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 7 |
| LOC Multiple | (1.5x) |
| Weight | 0.053 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0780" (5/64) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C6 |
| Length of Cut | 0.1170" |
| Corner Radius | 0.0100" |
