Harvey Tool
706931

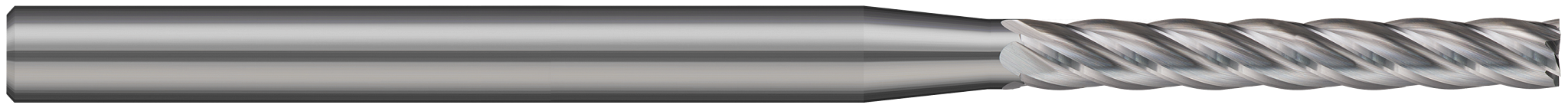

Miniature End Mill - Square - Long Flute - 5 Flute
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.2500" (1/4) Length of Cut Carbide Square End Mill, 5 Flutes |
|---|---|
| Short Description | 5 FL - 0.0310" (1/32) Cutter DIA x 0.2500" (1/4) LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 5 |
| LOC Multiple | (8x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Square |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.2500" (1/4) |
