Harvey Tool
709116

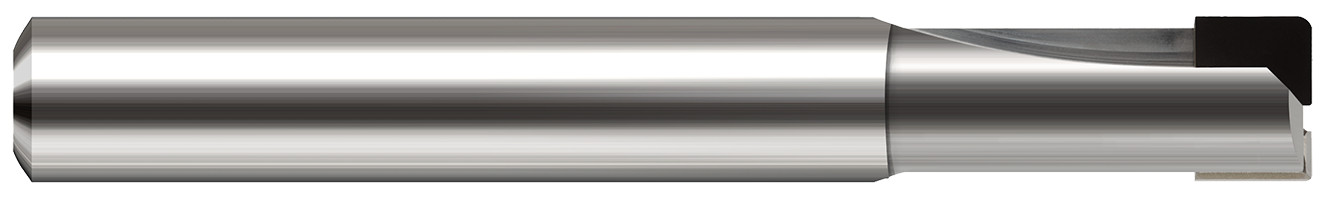

End Mill - PCD Diamond - Corner Radius
Specifications
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0100" Radius x 0.1250" (1/8) Length of Cut x 0.3130" Reach PCD Corner Radius End Mill, 2 Flutes, PCD |
|---|---|
| Short Description | 2 FL - 0.2500" (1/4) Cutter DIA x 0.0100" Radius x 0.1250" (1/8) LOC x 0.3130" Reach - PCD |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 2 |
| Weight | 0.06 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Corner Radius |
| Metric | N |
| Neck Diameter | 0.2350" |
| Coating | PCD |
| Length of Cut | 0.1250" (1/8) |
| Corner Radius | 0.0100" |
