Harvey Tool
709508

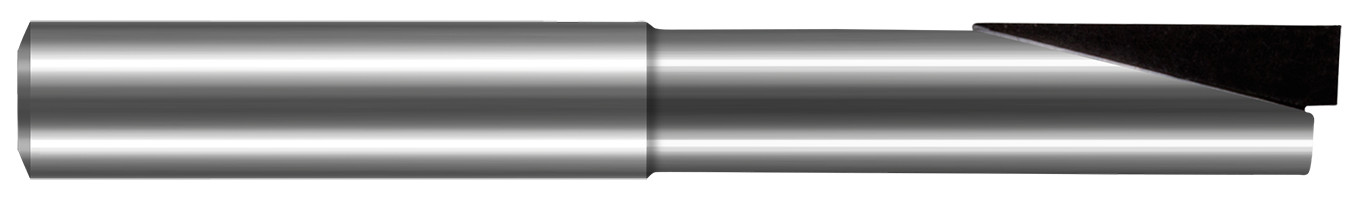

End Mill - PCD Diamond - Square
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.3750" (3/8) Length of Cut x 0.6250" (5/8) Reach PCD Square End Mill, 1 Flute, PCD |
|---|---|
| Short Description | 1 FL - 0.1250" (1/8) Cutter DIA x 0.3750" (3/8) LOC x 0.6250" (5/8) Reach - PCD |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 1 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Square |
| Metric | N |
| Neck Diameter | 0.1150" |
| Coating | PCD |
| Length of Cut | 0.3750" (3/8) |
