Harvey Tool
711593-C10

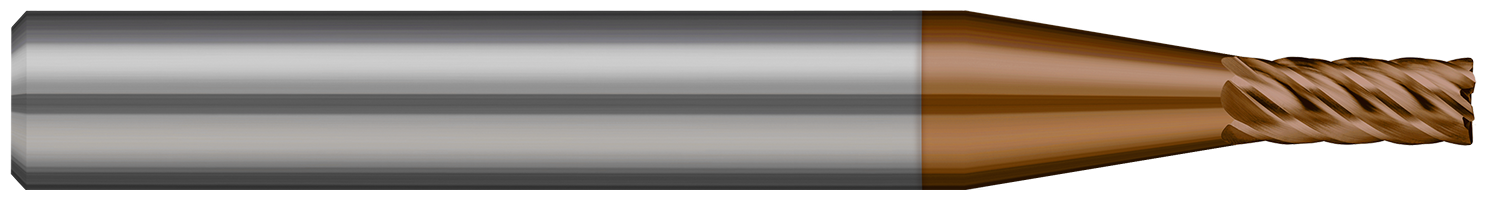

End Mill for Titanium - Corner Radius
Specifications
| Long Description | 0.0930" (3/32) Cutter DIA x 0.0050" Radius x 0.2790" Length of Cut Carbide Corner Radius End Mill for Titanium Alloys, 6 Flutes, Ti-Nano Coated |
|---|---|
| Short Description | 6 FL - 0.0930" (3/32) Cutter DIA x 0.0050" Radius x 0.2790" LOC - Ti-Nano Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 6 |
| LOC Multiple | (3x) |
| Weight | 0.053 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C10 |
| Length of Cut | 0.2790" |
| Corner Radius | 0.0050" |
