Harvey Tool
712747-C6

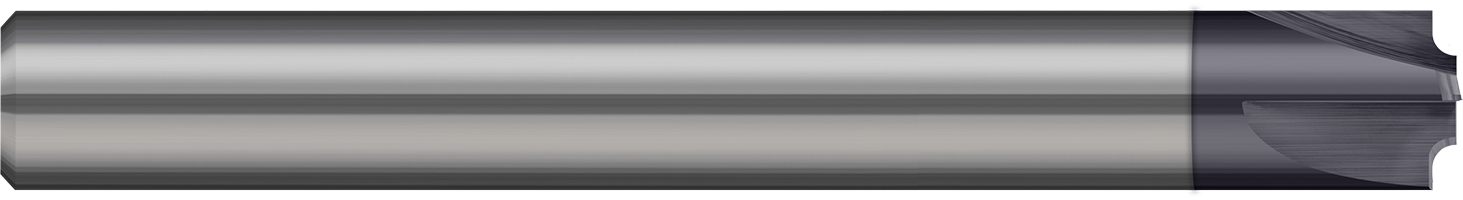

Corner Rounding End Mills - High Performance
Specifications
| Short Description | 0.0470" (3/64) Radius x 0.1250" (1/8) Pilot DIA - 2° Flare - 4 FL - AlTiN Nano Coated |
|---|---|
| Long Description | 0.0470" (3/64) Radius x 0.1250" (1/8) Pilot DIA Carbide 2° Flare Corner Rounding End Mill, 4 Flutes, AlTiN Nano Coated |
| Pilot Flare | 2 |
| Shoulder Flare | 2 |
| Double Ended | N |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| Weight | 0.062 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Corner Rounder |
| Metric | N |
| Coating | C6 |
| Radius | 0.0470" (3/64) |
