Harvey Tool
713708

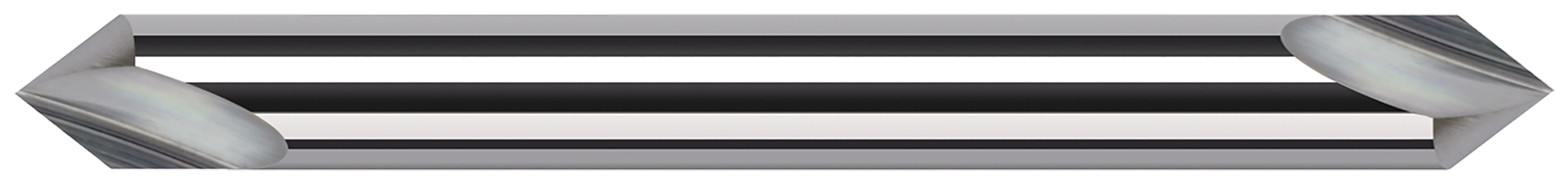

Engraving Cutter - Marking Cutter - Double-Ended
Specifications
| Type | II |
|---|---|
| Short Description | 0.1250" (1/8) Shank DIA x 60° included DE - 2 FL |
| Long Description | 0.1250" (1/8) Shank DIA x 60° included Carbide Marking Cutter DE, 2 Flutes |
| Metric | N |
| Included Angle | 60 |
| Angle per Side | 30 |
| Double Ended | Y |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Pointed |
| Length of Cut | 0.1040" |
