Harvey Tool
714024-C3

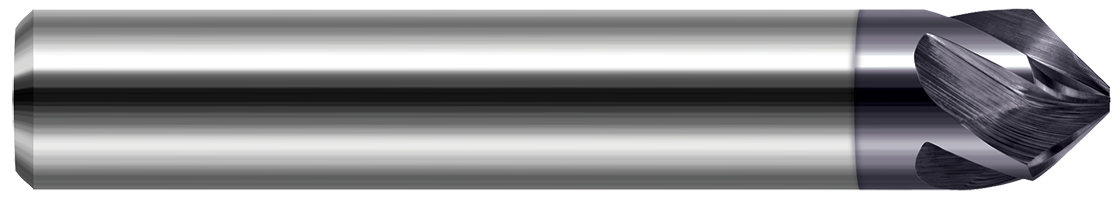

Chamfer Cutter - Flat End - Helical Flutes
Specifications
| Type | III |
|---|---|
| Short Description | 0.3750" (3/8) Shank DIA x 30° per side - 5 Helical FL - AlTiN Coated |
| Shank Diameter | 0.3750" (3/8) |
| Long Description | 0.3750" (3/8) Shank DIA x 30° per side Carbide Flat Chamfer Cutter, 5 Helical Flutes, AlTiN Coated |
| Flutes | 5 |
| Weight | 0.276 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Flat |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.2640" |
| Angle per Side | 30 |
| Included Angle | 60 |
