Harvey Tool
71410

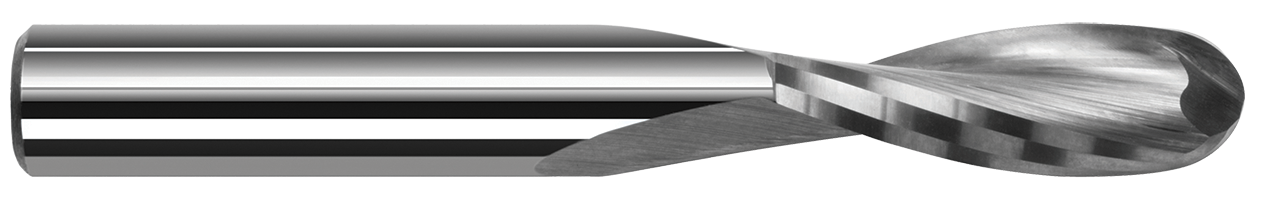

End Mill for Plastics - Ball Upcut - 2 Flute
Specifications
| Long Description | 0.1562" (5/32) Cutter DIA x 0.7500" (3/4) Length of Cut Carbide Ball End Mill for Plastic, 2 Flutes |
|---|---|
| Short Description | 2 FL - 0.1562" (5/32) Cutter DIA x 0.7500" (3/4) LOC |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 2 |
| LOC Multiple | (5x) |
| Weight | 0.035 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1562" (5/32) |
| Profile | Ball |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.7500" (3/4) |
