Harvey Tool
714116

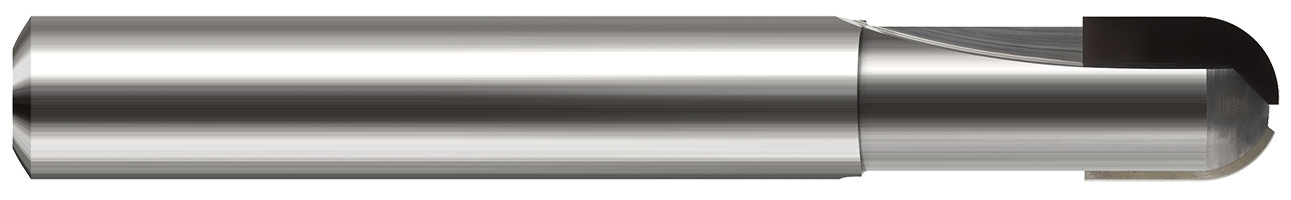

End Mill - PCD Diamond - Ball
Specifications
| Long Description | 0.2500" (1/4) Cutter DIA x 0.5000" (1/2) Length of Cut x 1.0000" (1) Reach PCD Ball End Mill, 2 Flutes, PCD |
|---|---|
| Short Description | 2 FL - 0.2500" (1/4) Cutter DIA x 0.5000" (1/2) LOC x 1.0000" (1) Reach - PCD |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 2 |
| Weight | 0.053 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Ball |
| Metric | N |
| Neck Diameter | 0.2350" |
| Coating | PCD |
| Length of Cut | 0.5000" (1/2) |
