Harvey Tool
714730-C6

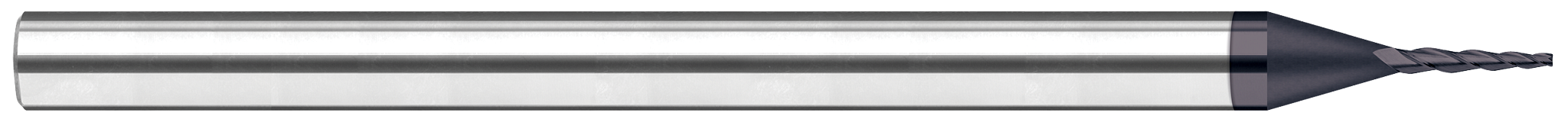

Miniature End Mill - Tapered - Corner Radius
Specifications
| Long Description | 0.0300" Cutter DIA x 0.0050" Radius x 0.1560" (5/32) Length of Cut Carbide Tapered Corner Radius End Mill, 3 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 3 FL - 0.0300" Cutter DIA x 0.0050" Radius x 0.1560" (5/32) LOC - AlTiN Nano Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (5x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0300" |
| Profile | Corner Radius |
| Metric | N |
| Coating | C6 |
| Length of Cut | 0.1560" (5/32) |
| Corner Radius | 0.0050" |
| Angle per Side | 5 |
| Included Angle | 10 |
