Harvey Tool
714912-C3

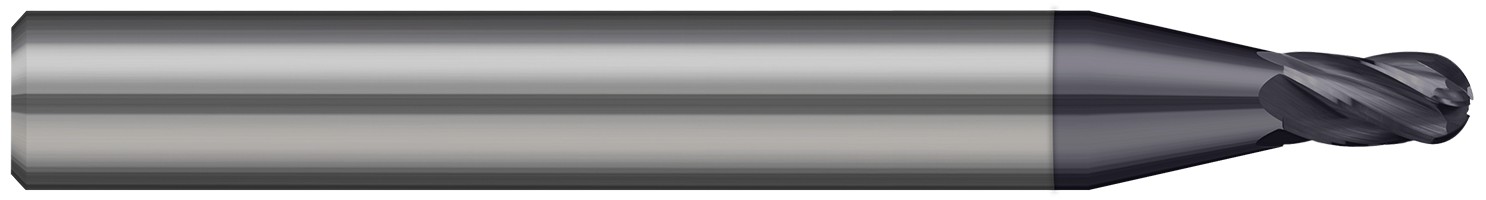

Miniature End Mill - 5 Flute - Ball
Specifications
| Long Description | 0.1875" (3/16) Cutter DIA x 0.3120" (5/16) Length of Cut Carbide Ball End Mill, 5 Flutes, AlTiN Coated |
|---|---|
| Short Description | 5 FL - 0.1875" (3/16) Cutter DIA x 0.3120" (5/16) LOC - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 5 |
| LOC Multiple | (1.5x) |
| Weight | 0.029 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Ball |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.3120" (5/16) |
