Harvey Tool
715214-C3

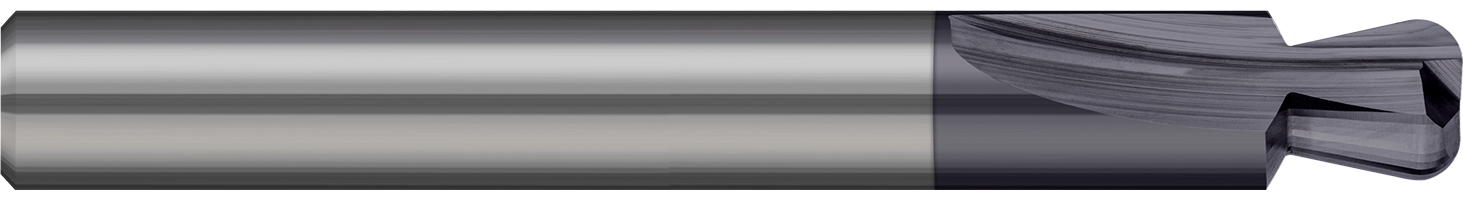

Parker Hannifin O-Ring Dovetail Cutter
Specifications
| Short Description | 0.0830" (2.1 mm) Cutter DIA x 0.0150" (1/64) Radius x 24° included - 2 FL - AlTiN Coated |
|---|---|
| Long Description | 0.0830" (2.1 mm) Cutter DIA x 0.0150" (1/64) Radius x 24° included Carbide Dovetail Rougher without Drop Hole Allowance, 2 Flutes, AlTiN Coated |
| Included Angle | 24 |
| Angle per Side | 12 |
| Metric | N |
| Coating | C3 |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0830" (2.1 mm) |
| Profile | Dovetail |
| Neck Diameter | 0.0540" |
| Length of Cut | 0.0850" |
| Corner Radius | 0.0150" (1/64) |
