Harvey Tool
715228-C8

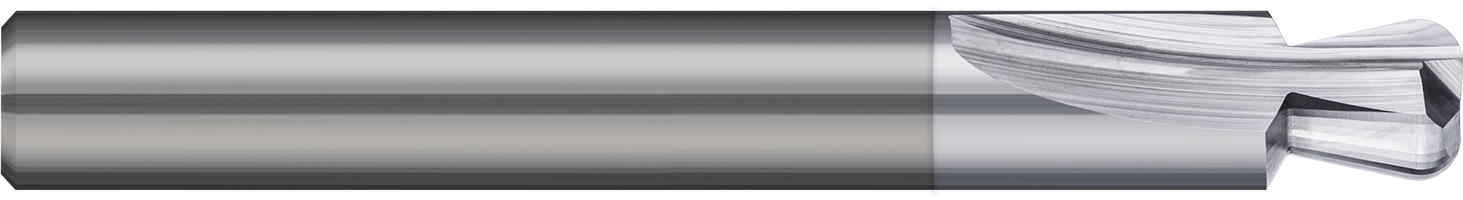

Parker Hannifin O-Ring Dovetail Cutter
Specifications
| Short Description | 0.1710" Cutter DIA x 0.0310" (1/32) Radius x 24° included - 2 FL - TiB2 Coated |
|---|---|
| Long Description | 0.1710" Cutter DIA x 0.0310" (1/32) Radius x 24° included Carbide Dovetail Rougher without Drop Hole Allowance, 2 Flutes, TiB2 Coated |
| Included Angle | 24 |
| Angle per Side | 12 |
| Metric | N |
| Coating | C8 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 2 |
| Weight | 0.026 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1710" |
| Profile | Dovetail |
| Neck Diameter | 0.1110" |
| Length of Cut | 0.1760" |
| Corner Radius | 0.0310" (1/32) |
