Harvey Tool
715812-C3

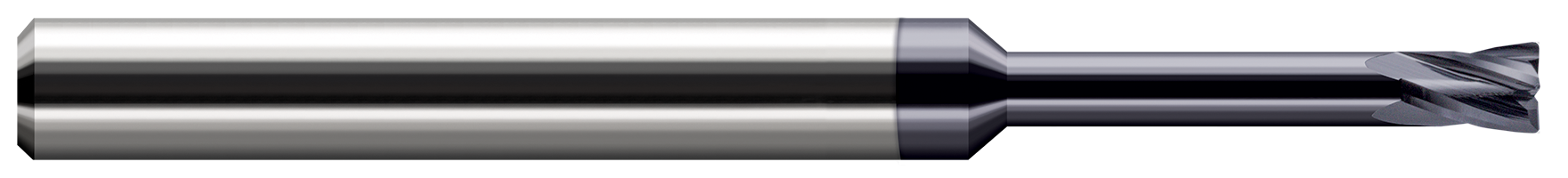

Backdraft Cutter - Corner Radius
Specifications
| Short Description | 4 FL - 0.1870" (3/16) Cutter DIA x 0.0100" Radius x 0.2850" LOC x 1.0000" (1) Reach - AlTiN Coated |
|---|---|
| Long Description | 0.1870" (3/16) Cutter DIA x 0.0100" Radius x 0.2850" Length of Cut x 1.0000" (1) Reach Carbide Corner Radius Backdraft Cutter, 4 Flutes, AlTiN Coated |
| Included Angle | 10 |
| Angle per Side | 5 |
| Metric | N |
| LOC Multiple | (1.5x) |
| Reach Multiple | (5x) |
| Coating | C3 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.029 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1870" (3/16) |
| Profile | Corner Radius |
| Neck Diameter | 0.1270" |
| Length of Cut | 0.2850" |
| Corner Radius | 0.0100" |
