Harvey Tool
716162

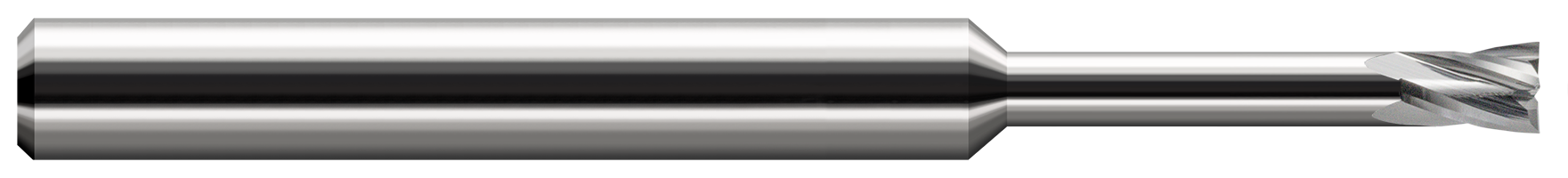

Backdraft Cutter - Square
Specifications
| Short Description | 4 FL - 0.0620" (1/16) Cutter DIA x 0.0930" (3/32) LOC x 0.3120" (5/16) Reach |
|---|---|
| Long Description | 0.0620" (1/16) Cutter DIA x 0.0930" (3/32) Length of Cut x 0.3120" (5/16) Reach Carbide Square Backdraft Cutter, 4 Flutes |
| Included Angle | 10 |
| Angle per Side | 5 |
| Metric | N |
| LOC Multiple | (1.5x) |
| Reach Multiple | (5x) |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Square |
| Neck Diameter | 0.0420" |
| Length of Cut | 0.0930" (3/32) |
