Harvey Tool
717831

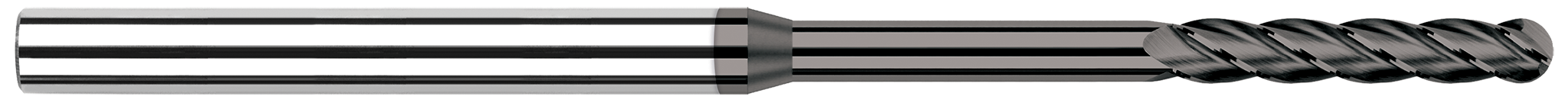

End Mill - CVD Diamond - Ball
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.1560" (5/32) Length of Cut x 0.3750" (3/8) Reach Carbide Ball End Mill, 4 Flutes, CVD Diamond 9µm |
|---|---|
| Short Description | 4 FL - 0.0310" (1/32) Cutter DIA x 0.1560" (5/32) LOC x 0.3750" (3/8) Reach - CVD Diamond 9µm |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (5x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Ball |
| Reach Multiple | (12x) |
| Metric | N |
| Neck Diameter | 0.0295" |
| Coating | C5 |
| Length of Cut | 0.1560" (5/32) |
