Harvey Tool
718062

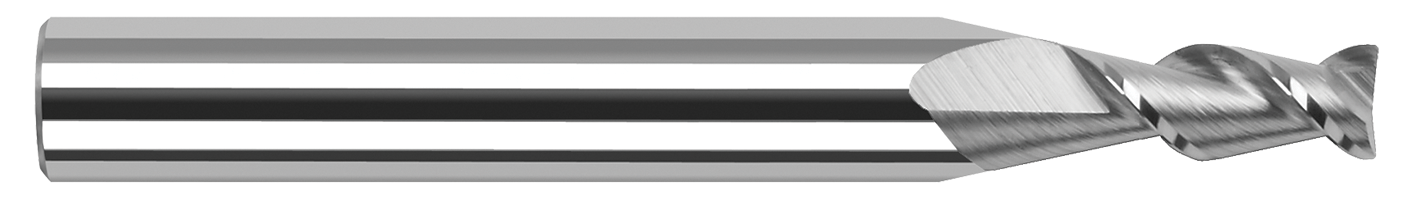

High Helix End Mill for Aluminum - Corner Radius
Specifications
| Long Description | 0.0620" (1/16) Cutter DIA x 0.0100" Radius x 0.1860" Length of Cut Carbide 45° Helix Corner Radius End Mill, 2 Flutes |
|---|---|
| Short Description | 2 FL - 0.0620" (1/16) Cutter DIA x 0.0100" Radius x 0.1860" LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.1860" |
| Corner Radius | 0.0100" |
