Harvey Tool
719115

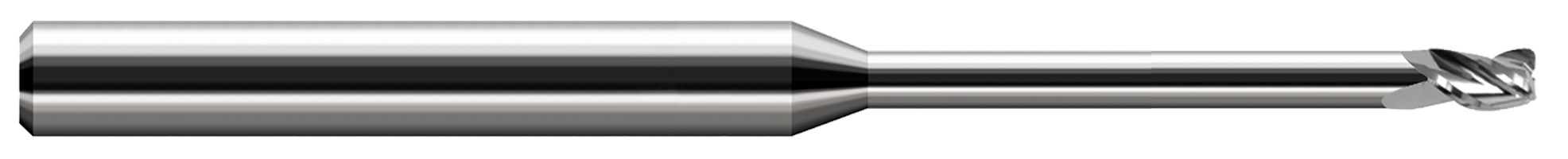

Miniature End Mill - 3 Flute - Corner Radius
Specifications
| Long Description | 0.0150" (1/64) Cutter DIA x 0.0030" Radius x 0.0220" Length of Cut x 0.1560" (5/32) Reach Carbide Corner Radius End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.0150" (1/64) Cutter DIA x 0.0030" Radius x 0.0220" LOC x 0.1560" (5/32) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0150" (1/64) |
| Profile | Corner Radius |
| Reach Multiple | (10x) |
| Metric | N |
| Neck Diameter | 0.0142" |
| Coating | UN |
| Length of Cut | 0.0220" |
| Corner Radius | 0.0030" |
