Harvey Tool
719393

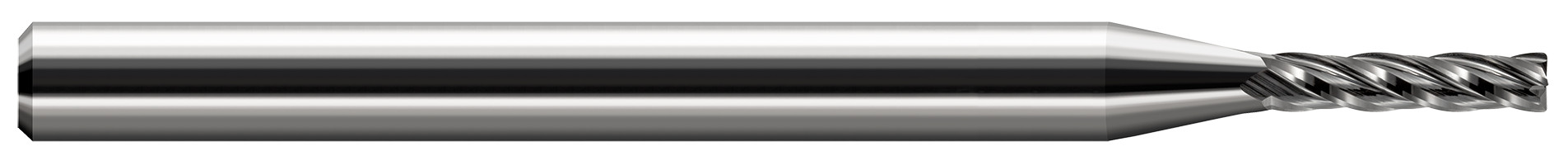

Miniature End Mill - Corner Radius - Long Flute
Specifications
| Long Description | 0.0930" (3/32) Cutter DIA x 0.0250" Radius x 0.5000" (1/2) Length of Cut Carbide Corner Radius End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.0930" (3/32) Cutter DIA x 0.0250" Radius x 0.5000" (1/2) LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (5x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.5000" (1/2) |
| Corner Radius | 0.0250" |
