Harvey Tool
719810-C3

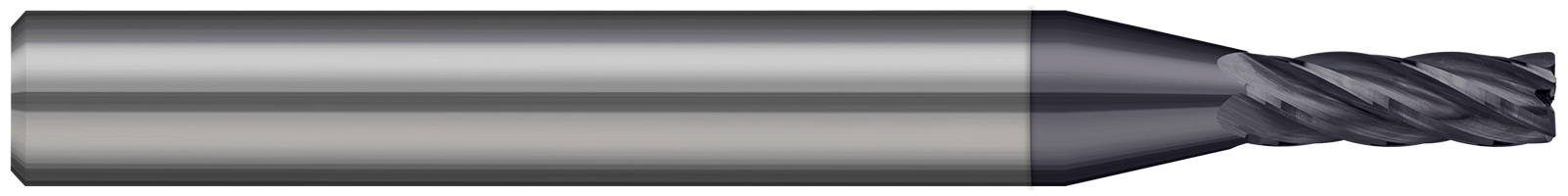

Miniature End Mill - 5 Flute - Corner Radius
Specifications
| Long Description | 0.1875" (3/16) Cutter DIA x 0.0100" Radius x 0.5700" Length of Cut Carbide Corner Radius End Mill, 5 Flutes, AlTiN Coated |
|---|---|
| Short Description | 5 FL - 0.1875" (3/16) Cutter DIA x 0.0100" Radius x 0.5700" LOC - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 5 |
| LOC Multiple | (3x) |
| Weight | 0.026 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.5700" |
| Corner Radius | 0.0100" |
