Harvey Tool
720031

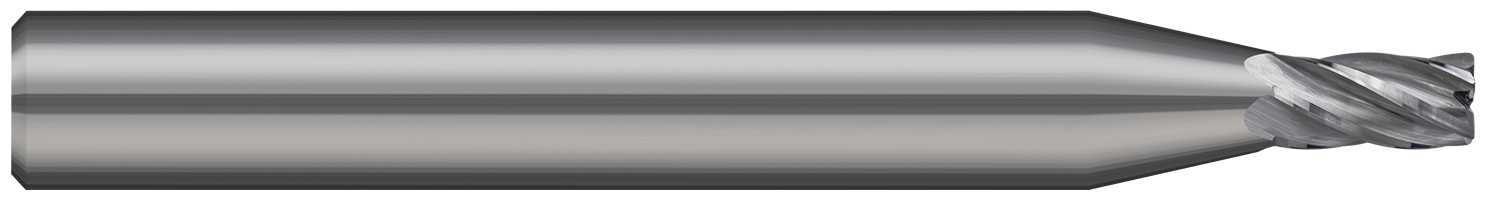

Miniature End Mill - 5 Flute - Corner Radius
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.0050" Radius x 0.0470" (3/64) Length of Cut Carbide Corner Radius End Mill, 5 Flutes |
|---|---|
| Short Description | 5 FL - 0.0310" (1/32) Cutter DIA x 0.0050" Radius x 0.0470" (3/64) LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 5 |
| LOC Multiple | (1.5x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.0470" (3/64) |
| Corner Radius | 0.0050" |
