Harvey Tool
720608

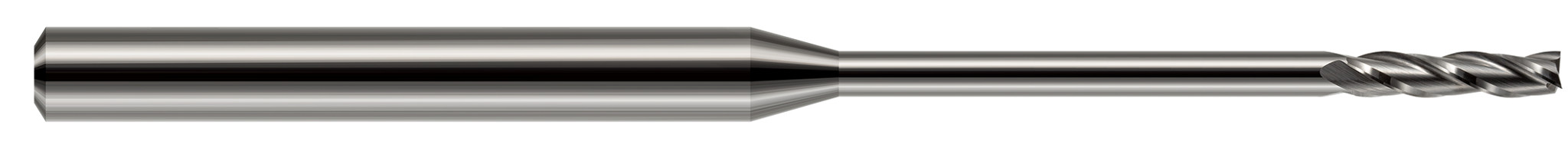

Miniature End Mill - 3 Flute - Square
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 1.0000" (1) Length of Cut x 1.8750" (1-7/8) Reach Carbide Square End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.1250" (1/8) Cutter DIA x 1.0000" (1) LOC x 1.8750" (1-7/8) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (8x) |
| Weight | 0.018 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Square |
| Reach Multiple | (15x) |
| Metric | N |
| Neck Diameter | 0.1210" |
| Coating | UN |
| Length of Cut | 1.0000" (1) |
