Harvey Tool
720793

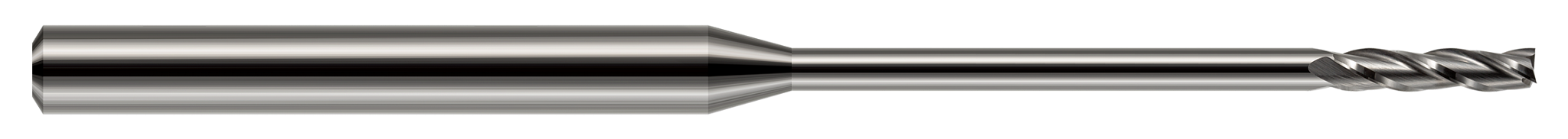

Miniature End Mill - 3 Flute - Square
Specifications
| Long Description | 0.0930" (3/32) Cutter DIA x 0.5000" (1/2) Length of Cut x 1.6750" Reach Carbide Square End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.0930" (3/32) Cutter DIA x 0.5000" (1/2) LOC x 1.6750" Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (5x) |
| Weight | 0.013 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Square |
| Reach Multiple | (18x) |
| Metric | N |
| Neck Diameter | 0.0915" |
| Coating | UN |
| Length of Cut | 0.5000" (1/2) |
