Harvey Tool
721930

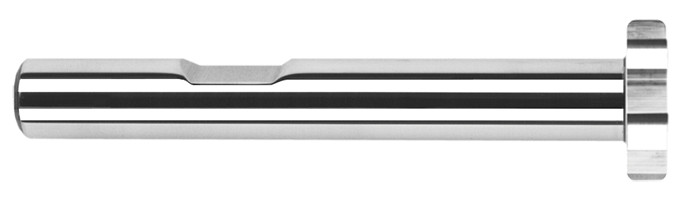

Keyseat Cutter - Corner Radius - Reduced Shank
Specifications
| Type | I |
|---|---|
| Short Description | 0.5000" (1/2) Cutter DIA x 0.0100" Radius x 0.0620" (1/16) Width - Standard Slotting - 8 FL |
| Long Description | 0.5000" (1/2) Cutter DIA x 0.0100" Radius x 0.0620" (1/16) Width CarbideCorner Radius Reduced Shank Standard Standard Keyseat Cutter, 8 Flutes |
| Cutter Width | 0.0620" (1/16) |
| Top Corner Radius | 0.01 |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 8 |
| Weight | 0.046 |
| Overall Length | 3.0620" (3-1/16) |
| Cutter Diameter | 0.5000" (1/2) |
| Shank Length | 3.0000" (3) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Corner Radius | 0.0100" |
