Harvey Tool
722467

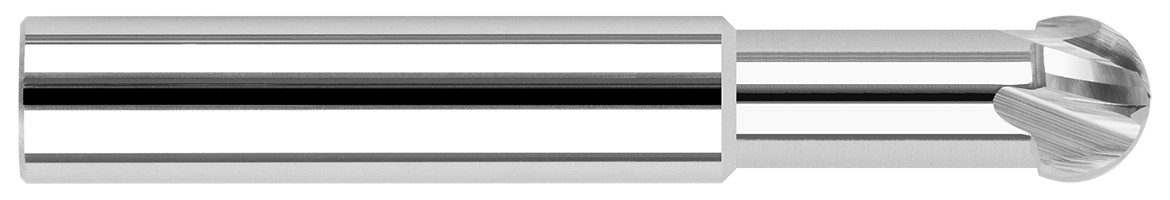

Undercutting End Mill - 220°
Specifications
| Long Description | 0.0200" (.5 mm) Cutter DIA x 0.0310" (1/32) Neck Length x 220° Carbide Undercutting End Mill, 2 Flutes |
|---|---|
| Short Description | 0.0200" (.5 mm) Cutter DIA x 0.0310" (1/32) Neck Length x 220° Wrap Angle - 2 FL |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Wrap Angle | 220 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0200" (.5 mm) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0160" (.4 mm) |
| Neck Length | 0.0310" (1/32) |
| Coating | UN |
| Length of Cut | 0.0130" |
| Radius | 0.0100" |
