Harvey Tool
723745-C6

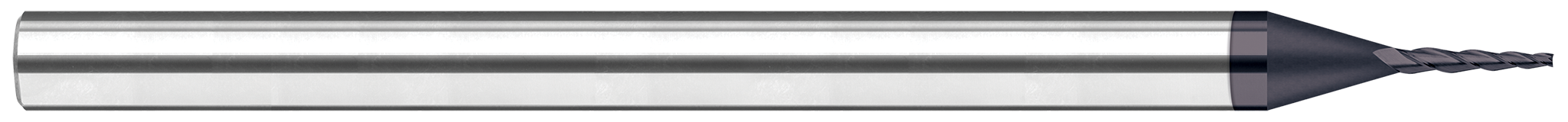

Miniature End Mill - Tapered - Square
Specifications
| Long Description | 0.0450" Cutter DIA x 0.2500" (1/4) Length of Cut Carbide Tapered Square End Mill, 4 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 4 FL - 0.0450" Cutter DIA x 0.2500" (1/4) LOC - AlTiN Nano Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| LOC Multiple | (5x) |
| Weight | 0.026 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.0450" |
| Profile | Square |
| Metric | N |
| Coating | C6 |
| Length of Cut | 0.2500" (1/4) |
| Angle per Side | 15 |
| Included Angle | 30 |
