Harvey Tool
727108-C3

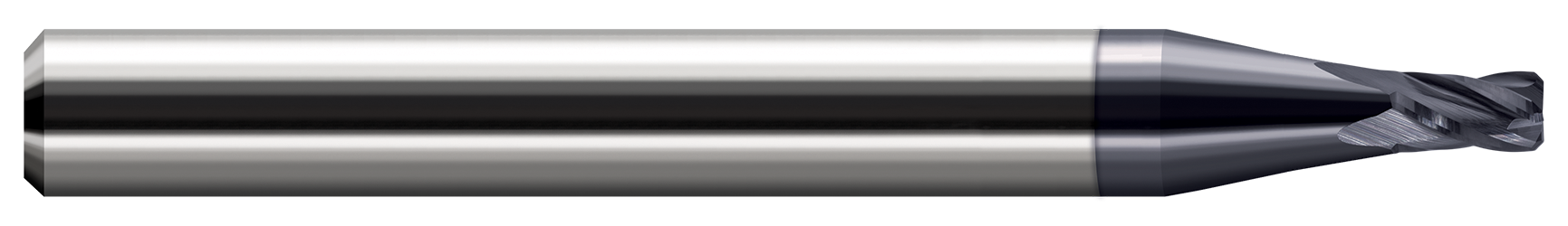

Miniature End Mill - 4 Flute - Corner Chamfer
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.0200" Corner Chamfer x 0.1870" (3/16) Length of Cut Carbide Square Corner Chamfer End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.1250" (1/8) Cutter DIA x 0.0200" Corner Chamfer x 0.1870" (3/16) LOC - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Chamfer |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.1870" (3/16) |
| Chamfer Length | 0.0200" |
| Center Cutting | false |
| Angle per Side | 45 |
