Harvey Tool
727116

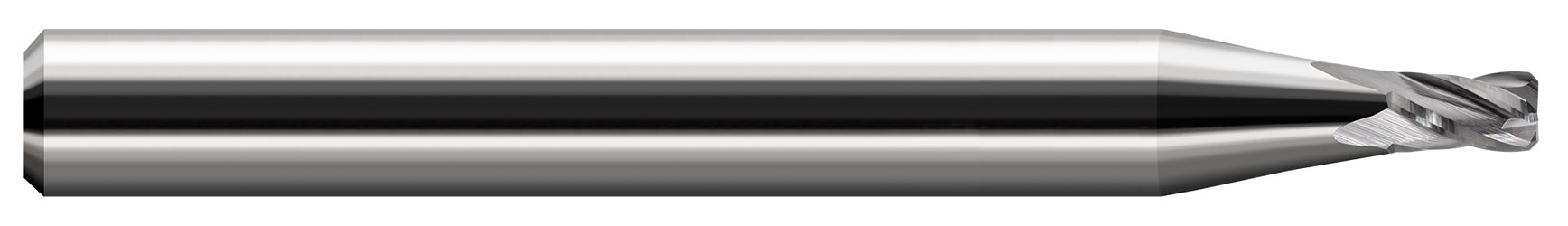

Miniature End Mill - 4 Flute - Corner Chamfer
Specifications
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0200" Corner Chamfer x 0.3750" (3/8) Length of Cut Carbide Square Corner Chamfer End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.2500" (1/4) Cutter DIA x 0.0200" Corner Chamfer x 0.3750" (3/8) LOC |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.062 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Corner Chamfer |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.3750" (3/8) |
| Chamfer Length | 0.0200" |
| Center Cutting | false |
| Angle per Side | 45 |
