Harvey Tool
728493-C3

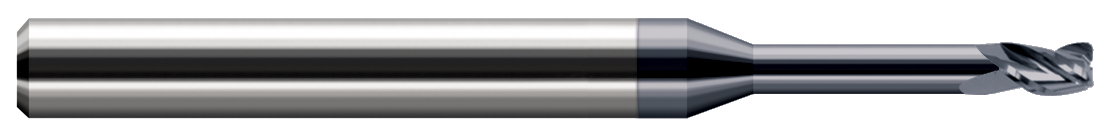

Miniature End Mill - 3 Flute - Corner Radius
Specifications
| Long Description | 0.0930" (3/32) Cutter DIA x 0.0200" Radius x 0.1390" Length of Cut x 0.5850" Reach Carbide Corner Radius End Mill, 3 Flutes, AlTiN Coated |
|---|---|
| Short Description | 3 FL - 0.0930" (3/32) Cutter DIA x 0.0200" Radius x 0.1390" LOC x 0.5850" Reach - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Corner Radius |
| Reach Multiple | (6x) |
| Metric | N |
| Neck Diameter | 0.0915" |
| Coating | C3 |
| Length of Cut | 0.1390" |
| Corner Radius | 0.0200" |
