Harvey Tool
730508

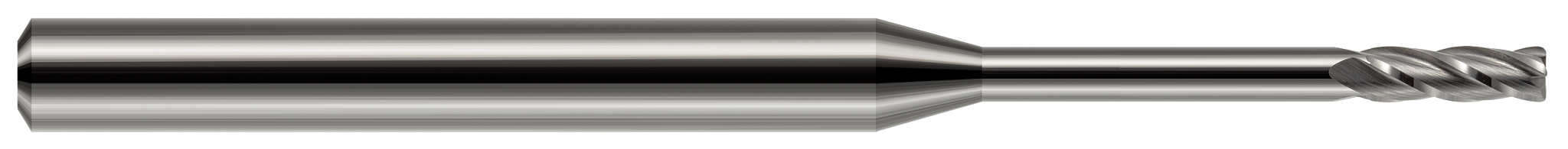

Miniature End Mill - 4 Flute - Corner Radius
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.0100" Radius x 0.3750" (3/8) Length of Cut x 1.2500" (1-1/4) Reach Carbide Corner Radius End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.1250" (1/8) Cutter DIA x 0.0100" Radius x 0.3750" (3/8) LOC x 1.2500" (1-1/4) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Radius |
| Reach Multiple | (10x) |
| Metric | N |
| Neck Diameter | 0.1210" |
| Coating | UN |
| Length of Cut | 0.3750" (3/8) |
| Corner Radius | 0.0100" |
