Harvey Tool
730662-C3

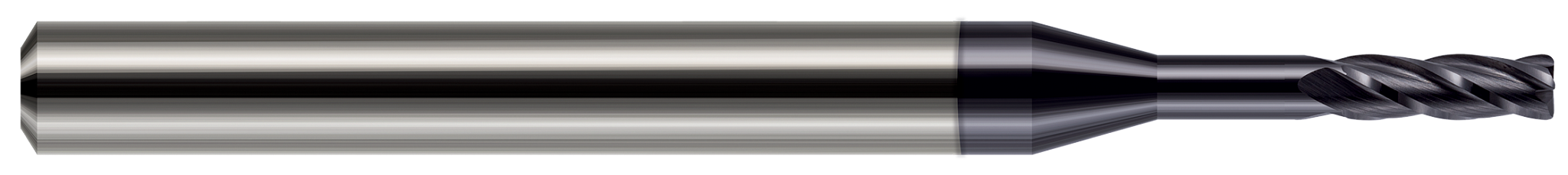

Miniature End Mill - 4 Flute - Corner Radius
Specifications
| Long Description | 0.0620" (1/16) Cutter DIA x 0.0100" Radius x 0.1860" Length of Cut x 0.3750" (3/8) Reach Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0620" (1/16) Cutter DIA x 0.0100" Radius x 0.1860" LOC x 0.3750" (3/8) Reach - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.007 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Corner Radius |
| Reach Multiple | (6x) |
| Metric | N |
| Neck Diameter | 0.0605" |
| Coating | C3 |
| Length of Cut | 0.1860" |
| Corner Radius | 0.0100" |
