Harvey Tool
731622

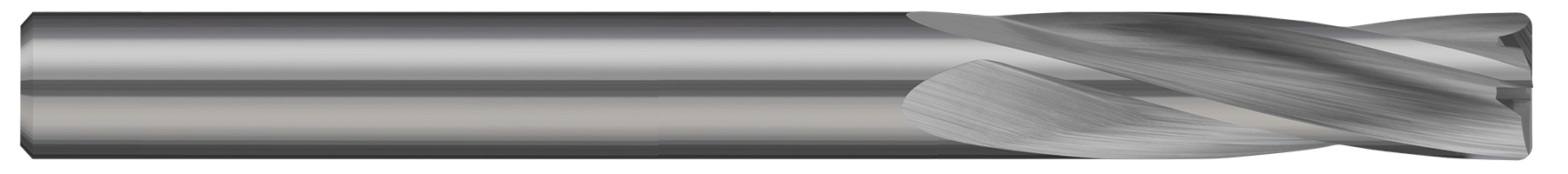

Counterbores - Flat Bottom - Corner Radius
Specifications
| Long Description | 0.3437" (11/32) Cutter DIA x 1.0000" (1) Flute Length Carbide Flat Bottom Counterbore, 4 Flutes |
|---|---|
| Short Description | 0.3437" (11/32) Cutter DIA x 1.0000" (1) Flute Length - 4 FL |
| Shank Diameter | 0.3750" (3/8) |
| Flute Length | 1.0000" (1) |
| Flutes | 4 |
| Weight | 0.112 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3437" (11/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Corner Radius | 0.0100" |
