Harvey Tool
731908

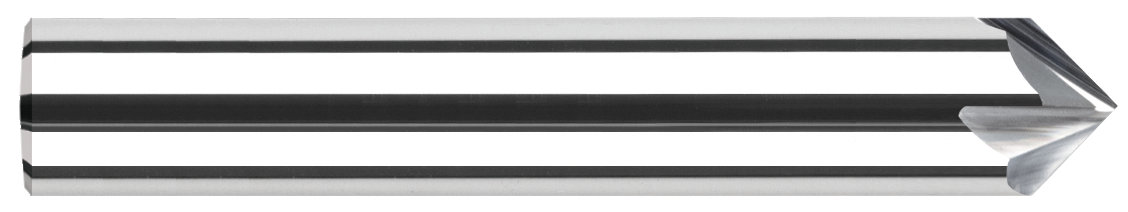

Chamfer Cutter - Pointed
Specifications
| Type | I |
|---|---|
| Short Description | 0.1250" (1/8) Shank DIA x 30° per side - 4 FL |
| Shank Diameter | 0.1250" (1/8) |
| Long Description | 0.1250" (1/8) Shank DIA x 30° per side Carbide Pointed Chamfer Cutter, 4 Flutes |
| Flutes | 4 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Pointed |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.1000" |
| Center Cutting | false |
| Angle per Side | 30 |
| Included Angle | 60 |
