Harvey Tool
73263M

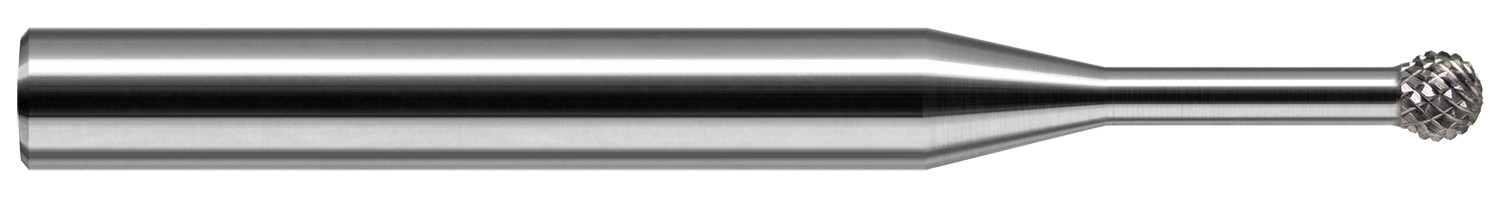

Undercutting End Mill - 270° Deburring Undercut
Specifications
| Long Description | 0.1180" (3 mm) Cutter DIA x 0.6250" (5/8) Neck Length x 270° Carbide Deburring Undercut End Mill, 15 RH Teeth, 12 LH Teeth |
|---|---|
| Short Description | 0.1180" (3 mm) Cutter DIA x 0.6250" (5/8) Neck Length x 270° Wrap Angle - 15 RH Teeth, 12 LH Teeth |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Wrap Angle | 270 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1180" (3 mm) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0560" |
| Neck Length | 0.6250" (5/8) |
| Coating | UN |
| Length of Cut | 0.1010" |
| Right Hand Teeth | 15 |
| Left Hand Teeth | 12 |
| Radius | 0.0590" |
