Harvey Tool
732846

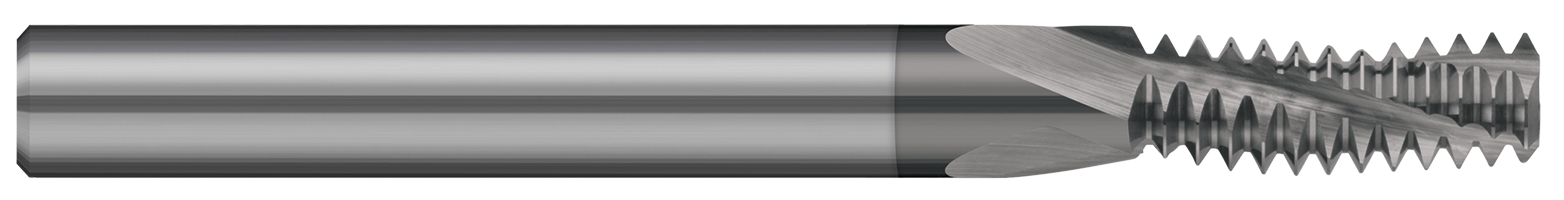

Thread Milling Cutter - Multi-Form - UN Threads
Specifications
| Short Description | 1/4-28 - 0.1800" Cutter DIA x 0.5000" (1/2) LOC - 3 FL - CVD Diamond 9µm |
|---|---|
| Long Description | 0.1800" Cutter DIA x 0.5000" (1/2) Length of Cut Carbide Multi-Form 1/4-28 Thread Milling Cutter, 3 Flutes, CVD Diamond 9µm |
| Included Angle | 60 |
| Metric | N |
| Size | 1/4-28 |
| Coating | C5 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 3 |
| Weight | 0.033 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1800" |
| Profile | Multi-Form |
| Length of Cut | 0.5000" (1/2) |
