Harvey Tool
733762-C3

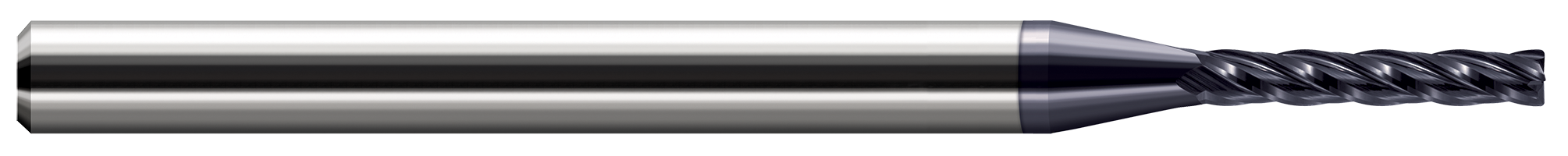

Miniature End Mill - Corner Radius - Long Flute
Specifications
| Long Description | 0.0620" (1/16) Cutter DIA x 0.0200" Radius x 0.3750" (3/8) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0620" (1/16) Cutter DIA x 0.0200" Radius x 0.3750" (3/8) LOC - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (6x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.3750" (3/8) |
| Corner Radius | 0.0200" |
