Harvey Tool
734512-C6

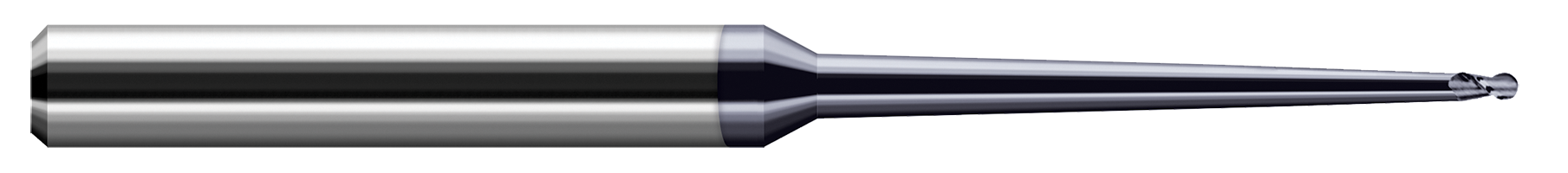

Miniature End Mill - 4 Flute - Ball
Specifications
| Long Description | 0.1870" Cutter DIA x 0.2810" (9/32) Length of Cut x 2° 2.5000" (2-1/2) Taper Reach Carbide Ball End Mill, 4 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 4 FL - 0.1870" Cutter DIA x 0.2810" (9/32) LOC x 2° 2.5000" (2-1/2) Taper Reach - AlTiN Nano Coated |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.148 |
| Neck Angle | 2 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.1870" |
| Profile | Ball |
| Metric | N |
| Neck Diameter | 0.3010" |
| Neck Length | 0.4680" (15/32) |
| Coating | C6 |
| Length of Cut | 0.2810" (9/32) |
