Harvey Tool
734593

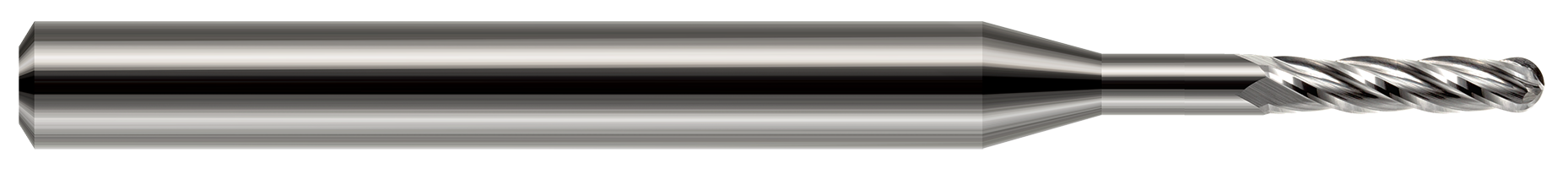

Miniature End Mill - 4 Flute - Ball
Specifications
| Long Description | 0.0930" (3/32) Cutter DIA x 0.2790" Length of Cut x 0.6700" Reach Carbide Ball End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.0930" (3/32) Cutter DIA x 0.2790" LOC x 0.6700" Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.018 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Ball |
| Reach Multiple | (7x) |
| Metric | N |
| Neck Diameter | 0.0915" |
| Coating | UN |
| Length of Cut | 0.2790" |
