Harvey Tool
734962

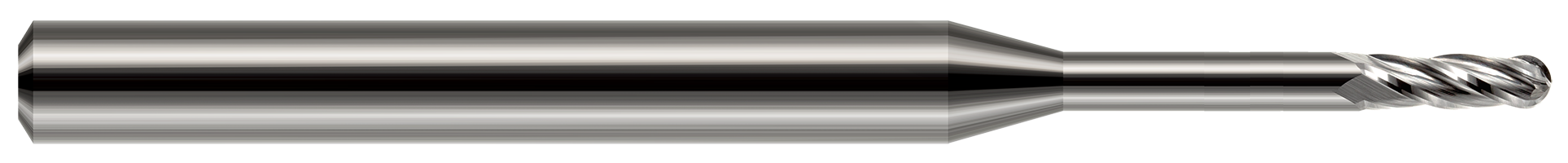

Miniature End Mill - 4 Flute - Ball
Specifications
| Long Description | 0.0620" (1/16) Cutter DIA x 0.1860" Length of Cut x 0.5000" (1/2) Reach Carbide Ball End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.0620" (1/16) Cutter DIA x 0.1860" LOC x 0.5000" (1/2) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0620" (1/16) |
| Profile | Ball |
| Reach Multiple | (8x) |
| Metric | N |
| Neck Diameter | 0.0605" |
| Coating | UN |
| Length of Cut | 0.1860" |
