Harvey Tool
737619

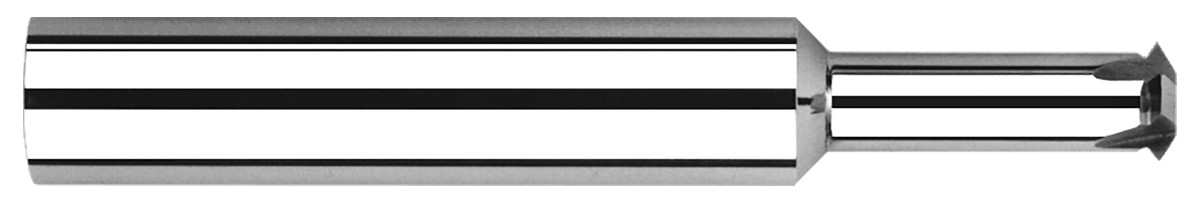

Thread Milling Cutter - Single Form - Metric
Specifications
| Short Description | M2 - 1.500 mm Cutter DIA x 6.300 mm Reach - 2 FL |
|---|---|
| Long Description | 1.500 mm Cutter DIA x 6.300 mm Reach Carbide Single Form M2 Thread Milling Cutter, 2 Flutes |
| Included Angle | 60 |
| Angle per Side | 30 |
| Metric | Y |
| Size | M2 |
| Reach Multiple | (7x) |
| Coating | UN |
| Shank Diameter | 3.000 mm |
| Flutes | 2 |
| Weight | 0.007 |
| Overall Length | 38.000 mm |
| Cutter Diameter | 1.500 mm |
| Profile | Single Form |
| Neck Diameter | 0.900 mm |
| Length of Cut | 0.346 mm |
