Harvey Tool
737624-C3

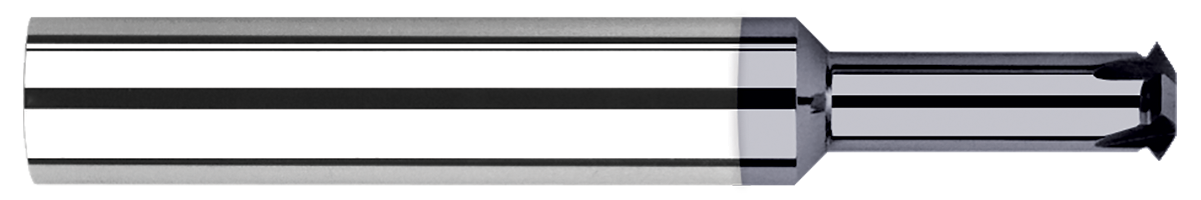

Thread Milling Cutter - Single Form - Metric
Specifications
| Short Description | M3 - 2.300 mm Cutter DIA x 9.500 mm Reach - 4 FL - AlTiN Coated |
|---|---|
| Long Description | 2.300 mm Cutter DIA x 9.500 mm Reach Carbide Single Form M3 Thread Milling Cutter, 4 Flutes, AlTiN Coated |
| Included Angle | 60 |
| Angle per Side | 30 |
| Metric | Y |
| Size | M3 |
| Reach Multiple | (7x) |
| Coating | C3 |
| Shank Diameter | 3.000 mm |
| Flutes | 4 |
| Weight | 0.007 |
| Overall Length | 38.000 mm |
| Cutter Diameter | 2.300 mm |
| Profile | Single Form |
| Neck Diameter | 1.380 mm |
| Length of Cut | 0.531 mm |
